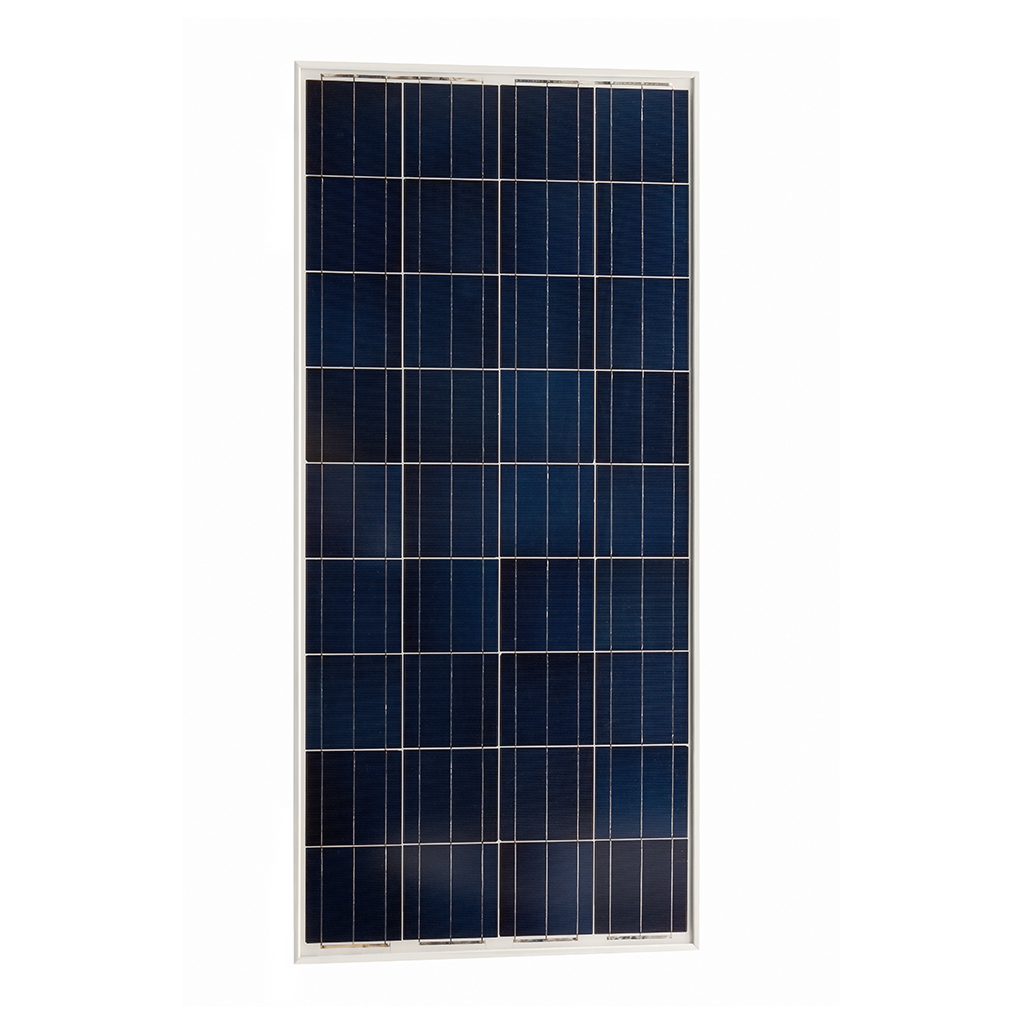

ELECTRICAL SPECIFICATIONS
- Nominal Power (PMPP): 175 W
- Voltage at Max Power (VMPP): 18.3 V
- Current at Max Power (IMPP): 9.56 A
- Open Circuit Voltage (VOC): 21.9 V
- Short Circuit Current (ISC): 10.24 A
- Cell Type: Polycrystalline
- Number of Cells: 36
- Maximum System Voltage: 1000V
PHYSICAL SPECIFICATIONS
- Dimensions (L×W×H): 1485×668×30 mm
- Weight: 12 kg
- Frame: Aluminium
- Junction Box: PV-LH0806
- Cable Length: 900 mm
- Connector Type: MC4
ENVIRONMENTAL & PERFORMANCE
- Operating Temperature: -40°C to +85°C
- Temp. Coeff. Power: -0.45/°C
- Temp. Coeff. VOC: -0.35/°C
- Output Tolerance: +/-3%
- Surface Load Capacity: 200 kg/m²
- Hail Resistance: 23 m/s, 7.53 g
WARRANTY & CERTIFICATIONS
- Product Warranty: 5 years
- Performance Warranty: 10 years 90% + 25 years 80% of power output
- Test Standards: STC (Standard Test Conditions): 1000 W/m², 25ºC, AM 1.5
KEY FEATURES & BENEFITS
- Low voltage-temperature coefficient enhances high-temperature operation
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum
- 25-Year limited warranty on power output and performance
- 5-Year limited warranty on materials and workmanship
- Sealed, waterproof, multi-functional junction box gives high level of safety
- High performance bypass diodes minimize the power drop caused by shade
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet
- Sturdy, anodized aluminium frame allows modules to be easily roof-mounted
APPLICATIONS
Residential Solar
Perfect for small to medium residential installations
Mobile & Marine
Ideal for RVs, boats, and mobile applications
Off-Grid Systems
Reliable power for remote installations
Battery Charging
Optimized for 12V battery systems
